Product Name
Hydraulic cutting machine, precision hydraulic punching machine, mobile phone protective film, PET film, double-sided tape, self-adhesive shearing machine;
Scope of application
This series of hydraulic presses are widely used in the cutting of all kinds of mobile phones, digital cameras, mobile phones and computer LCD screens to ensure double film;
All kinds of self-adhesive, cutting in half, etc.; suitable for the use of unguided and simple cutting molds, which are widely used in the mobile phone industry, electric
The necessary equipment for the camera industry in the brain industry;
Features
1. This series of hydraulic machine tools use the hydraulic pressure of 1-14MPA as the power source, the external machine three-phase AC380V50HZ or three-phase AC22060HZ AC power supply, and the power consumption does not exceed 3,7KW (single-phase AC220 civil power supply can also be used according to customer needs; < br>
2. Adopting four-note three-plate structure, the vertical accuracy of the movable plate is controlled by four precision guide sleeves, and the balance accuracy of any point on the lower working face and the upper working face is below 0.08MM,
3. Adjustable positioning oil cylinder is adopted, the positioning accuracy of the bottom dead center is high, the repeatability is less than 0.01mm, and the cutting depth is 100% guaranteed;
4. The cutting area of the standard machine is 520MM*350MM, which is equivalent to a 21-inch LCD display, and can also be customized according to customer requirements
5. The pressure, shearing stroke, pressing time and closing height can be adjusted by customers themselves, which is convenient for operation;
6. The output range of this series of hydraulic machines is 3tf, 5tf, 10tf...50tf optional (1tf=1000kgf=9.8KN), and can also be customized according to customer needs,

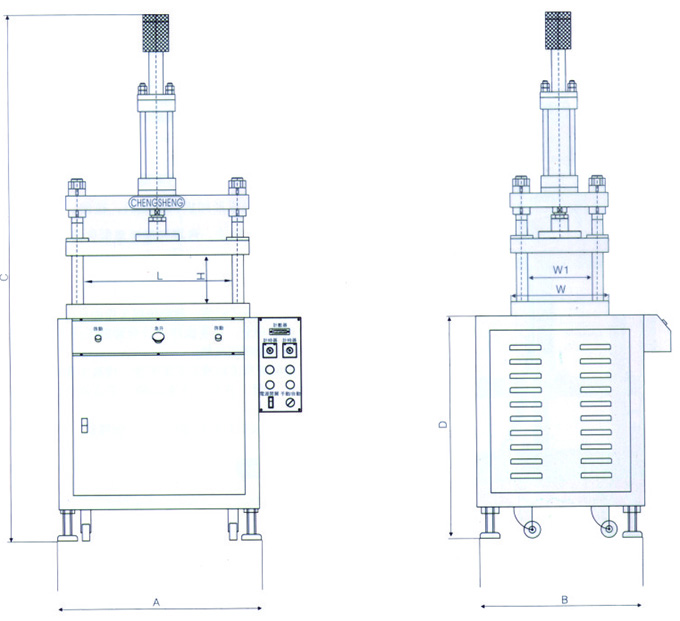

| Model |
A |
B |
C |
D |
H |
L |
W |
W1 |
| CS-105H-3T |
700 |
600 |
1650 |
780 |
170 |
400 |
300 |
180 |
| CS-105H-5T |
700 |
600 |
1700 |
780 |
170 |
520 |
350 |
230 |
| CS-105H-10T |
700 |
600 |
1700 |
780 |
170 |
520 |
350 |
230 |
| CS-105H-15H |
800 |
700 |
1780 |
780 |
170 |
600 |
500 |
350 |
(Technical parameter)
| item |
CS-105H-3T |
CS-105H-5T |
CS-105H-1OT |
CS-105H-15H |
| Theoretic output(Ton) |
1-3 |
1.5-5 |
3-10 |
5-15 |
| Heat generating template size(mm) |
400*300 |
520*350 |
520*350 |
600*500 |
| Max.operating height(mm) |
170 |
170 |
170 |
170 |
| Cylinder stroke(mm) |
100-150 |
100-150 |
150-150 |
150-150 |
| Power supply |
3φ380VAC，50/60HZ |
3φ380VAC，50/60Hz |
3φ380VAC，50/60Hz |
3φ380VAC，50/60HZ |
| Motor power(KW) |
2．25 |
2．25 |
2．25 |
2．25 |
